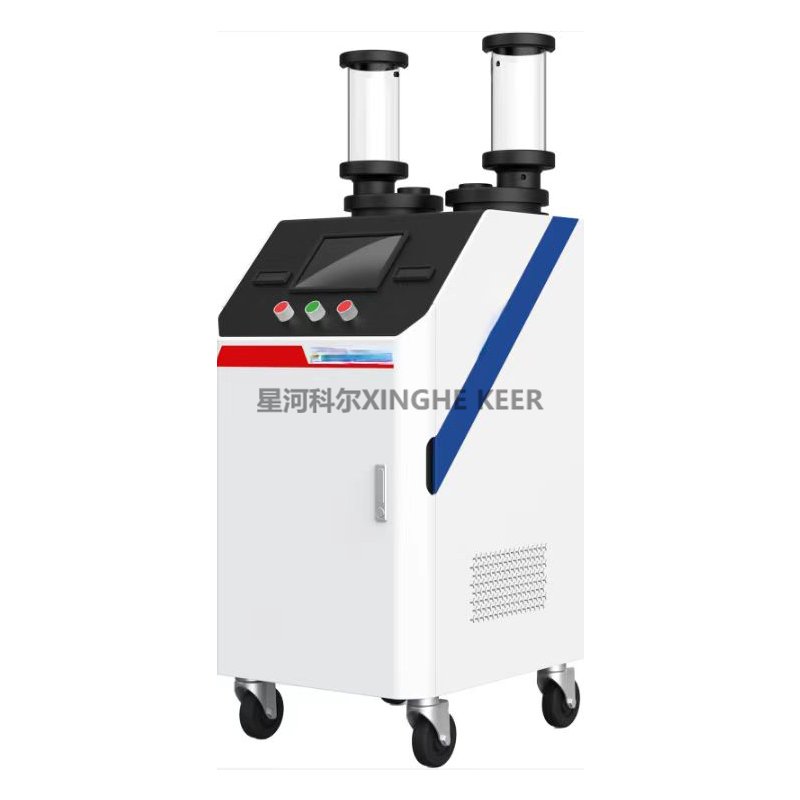

The powder feeder employs a scraper-type powder feeding system, which consists of a drive unit, electrical system, gas system, control system, etc.
The powder feeder utilizes low-pressure powder feeding technology, providing a large powder feeding capacity and uniform powder flow. It is suitable for laser cladding, especially high-speed laser cladding, and can also be used for 3D laser printing.
Product characteristics：
• Special structure design, high powder flow stability;
• Multiple silos can feed powder separately or simultaneously;
• Powder feed quantity, protection gas and powder feed gas flow rate are digitally and continuously adjustable;
• Industrial touch screen and controller, stable and reliable performance;
• Intelligent design: when the air pressure is too low or too high, the system automatically alarms, automatically cuts off the laser, safe and reliable;
• Can achieve integrated control with processing equipment (such as lasers, machine tools).
Model number | monocular | binocular |
| Size specification | 600*500*1400mm（W*D*H） | 500*570*1300（W*D*H） |
| Unit of work | split | Cabinet type |
| Single/double barrel volume | 4L | 1.5L*2 |
| Maximum speed of powder plate | 8r/min | |
| Carrier gas type | Nitrogen/Argon | |
| Powder gas flow adjustment range | 0.5-25L/min | |
| Protection gas flow regulation range | 1-50L/min | |
| Pressure display range | 0.1-1Mpa | |
| Support powder preheating temperature | ≤85℃ | |
| Support powder size | 15-100um | |
